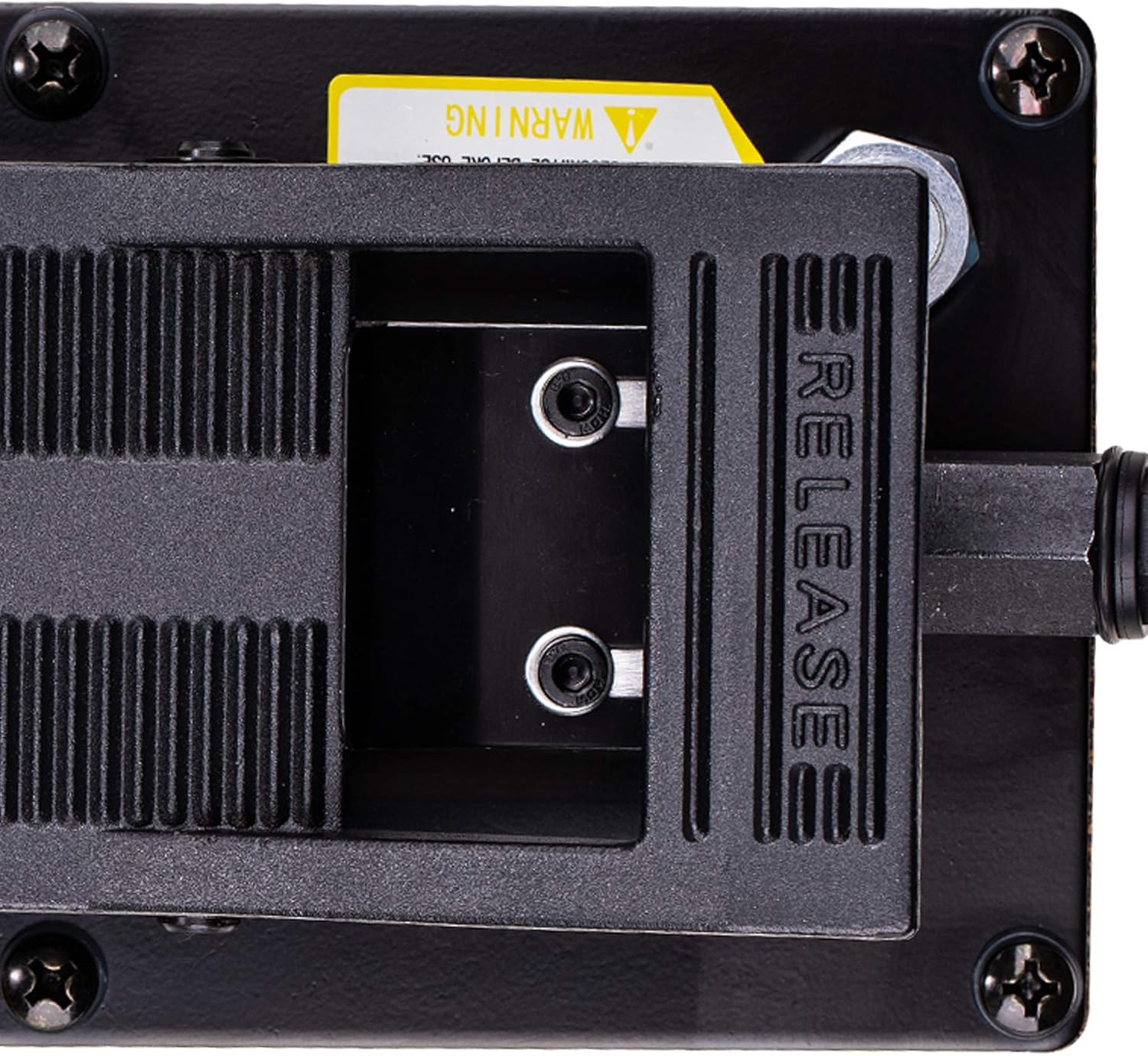

Taixinhyd Hydraulic Pump Air Hydraulic Foot Pump Aluminum Tank 98 CU.in 10000 PSI Air Actua Treadle Hydraulic Pump
Product details
| Management number | 211682456 | Release Date | 2026/04/04 | List Price | US$55.50 | Model Number | 211682456 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Taixinhyd 10,000 PSI air/hydraulic foot pump requires 40-150 PSI air pressure Designed to be used with single acting cylinders Provides hands free operation for pumping and releasing load Usable fluid capacity 98 cubic inches Flow rate 42 cu. in. with no load, 8.5 cu. in. with load Complies with ASME PALD/2009 Safety Standards Fast Acting With 1700cc Oil Reservoir For Use On Ram Cylinders From 10 Ton Up To 40 Ton Capacity
- 1.Air hydraulic Pump -- Input Air Pressure: 40-150Psi（2.8-10.5bar）
- 2.Max. Out Put Air Pressure: 10000Psi（700bar）, Max. Output Flow Rate: 1.7L（104cu.in）
- 3.Air Hydraulic Pump Port Size: Air Port 1/4”NPT, Oil Port 3/8 NPT
- 4.Max. Output Flow Rate NO LOAD: 850ml/min（52cu.in）, Max. Output Flow Rate (in3/min) LOAD: 170ml/min（10cu.in）
- 5.Air consumption（under 100psi/6.9bar）: 11 SCFM（0.31 cu.m/min)
| Material | aluminum |
|---|---|
| Item Weight | 11.77 pounds |
| Manufacturer | Taixin hydraulic |
| Batteries Included | No |
| Batteries Required | No |
| Package Dimensions | 11 x 9 x 6.7 inches |
